₹23,750₹30,00021% OFF
+5% GST
- Direct-drive servo motor
- Up to 5000 stitches/min
- Automatic lubrication
Industrial Machines
JACK A2C
A next‑generation direct‑drive industrial lockstitch sewing machine featuring automatic thread trimming and manual bartack lever, built for versatility on light to heavy fabrics. It integrates the servo motor and control box into the head, delivering energy savings, automatic lubrication, LED lighting, safety alarms, and high‑voltage protection. Supplied as a complete unit with table, stand, accessories, and parts kit. Price Range: ₹31,800–₹34,000 (₹24,000–₹32,000 online deals in India), ₹22,500–₹24,500 (supplier quotes in Mumbai/Kolkata)
₹26,125₹31,80018% OFF
+5% GST
Connect & Share
Features
- Automatic thread trimmer: Cuts thread via heel pedal, reducing tail from ~7 cm to ~4 cm and boosting productivity by ~30%
- Eco‑servo direct‑drive motor: Integrated into the head for quiet, efficient operation—~71% less power (~446 kWh/yr saved)

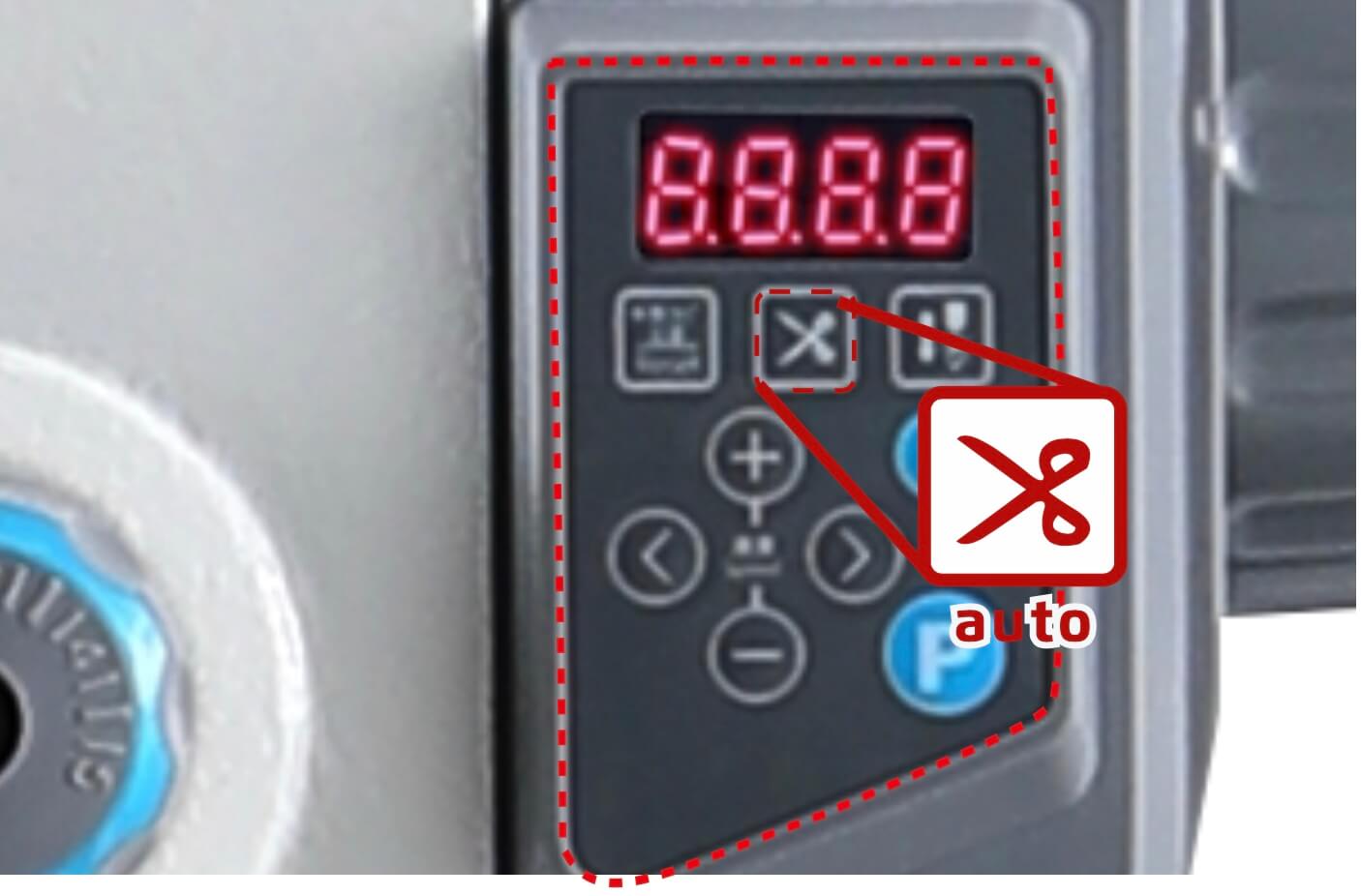

- Integrated control panel: Quick keys for functions like auto‑cut, needle‑up/down, stitch‑to‑stitch precision
- Automatic lubrication: Recirculating pump with oil‑glass indicator
- Needle‑position control & stitch‑to‑stitch button: Enables precise pivoting and seam starts/stops
- LED lighting: Adjustable 3‑level light to reduce eye strain

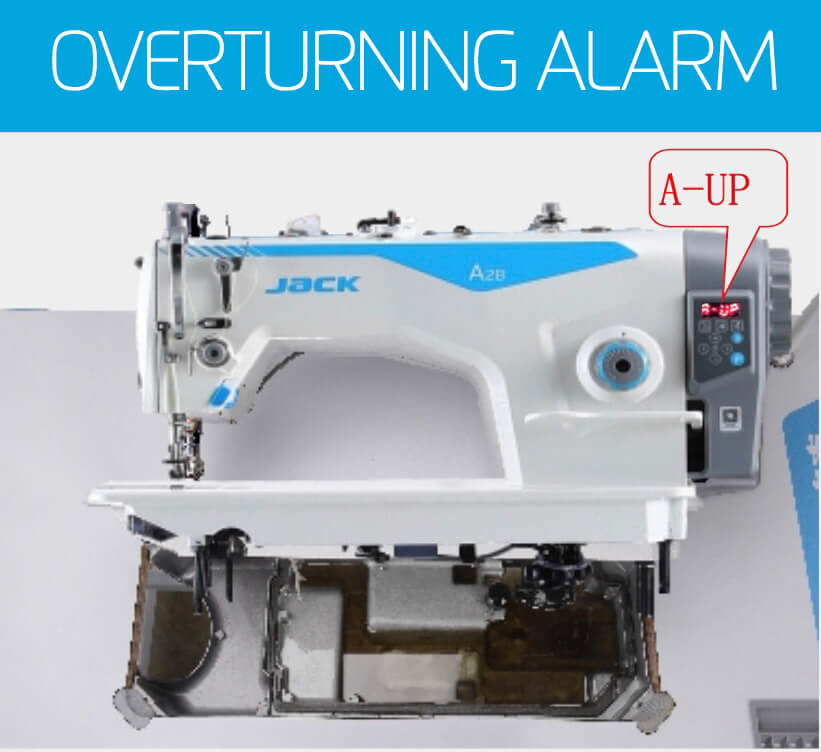

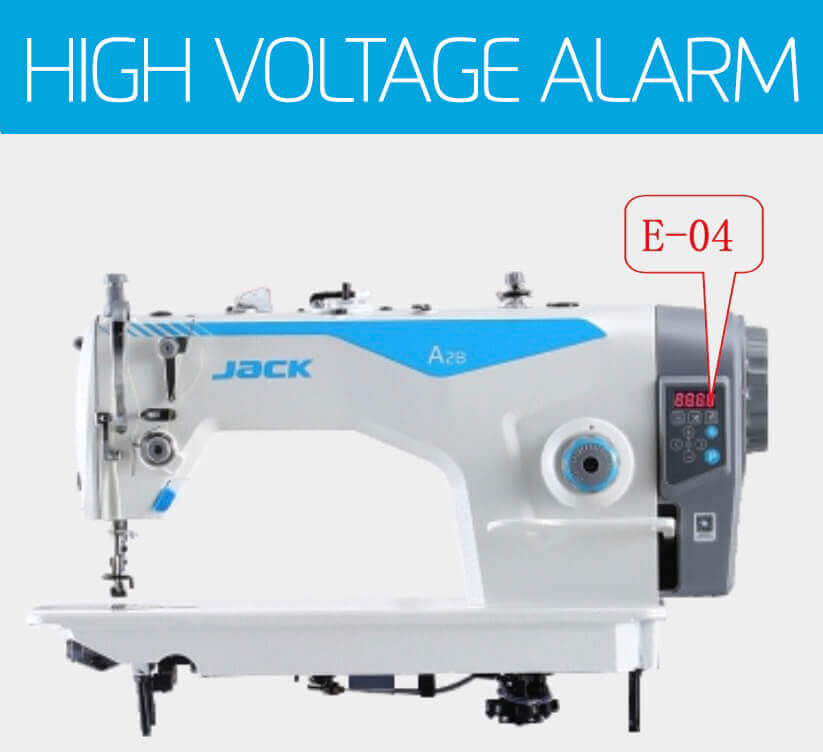

- Safety features: Anti‑overturning alarm and voltage protector for operator and machine safety
- Bobbin winder: Built‑in, allowing sequential bobbin winding during operation
Specifications
- Needle system: DB×1 (#11–18); CH model uses DB×5 (#18–21)
- Max stitch length: 5 mm
- Presser foot lift: 5 mm (hand), 13 mm (pedal)
- Sewing speed: Up to 5,000 spm
- Max fabric thickness: ~10 mm
- Oil lubrication: Fully automatic
- Power consumption: 750 W
- Energy-saving: ~71% less than clutch motors
- Safety systems: Overturning alarm, voltage protection
- Size: ~645 × 248 × 550 mm
- Weight: 30 kg net / 36.5 kg gross
Need installation, parts or service?
We provide on-site installation, spare parts sourcing and AMC packages in Bangalore. Use the WhatsApp or call CTA to check compatibility and schedule a service visit.
